비전 픽스쳐 제품 예
조정 가능한 클램핑, 자석, 타워 및 기타 구성품 응용 분야를 포함하여 모듈식 비전 픽스쳐 셋업 예를 확인하십시오.
조절형 모듈식 예
-
Mirco sliding pusher clamp application example
For securing small and delicate parts using a sprung pointed tip, with minimum force and contact. The tip is adjustable to various heights for a variety of different components.
[800 x 800] [135kB] -
Plastic part being held with the micro V spring clamp
For locating and securing parts in a V. The clamp has an adjustable spring arm for different diameter components and also an adjustable end stop.
[800 x 800] [100kB] -
Fixturing example for a micro V spring clamp
For holding parts in a V with a spring arm and adjustable end stop.
[800 x 800] [99kB] -
VMR-1525-4 rotational micro v application image
VMR-1525-4 rotational micro v application image
[1200 x 1200] [180kB] -
Large 45° adjustable slide mirror for use with M4 and M6 fixturing components
To aid in viewing and inspecting the end of a part.
[800 x 800] [165kB] -
Large 45° adjustable slide mirror for use with M4 and M6 fixturing components
To aid in viewing and inspecting the end of a part.
[800 x 800] [149kB] -

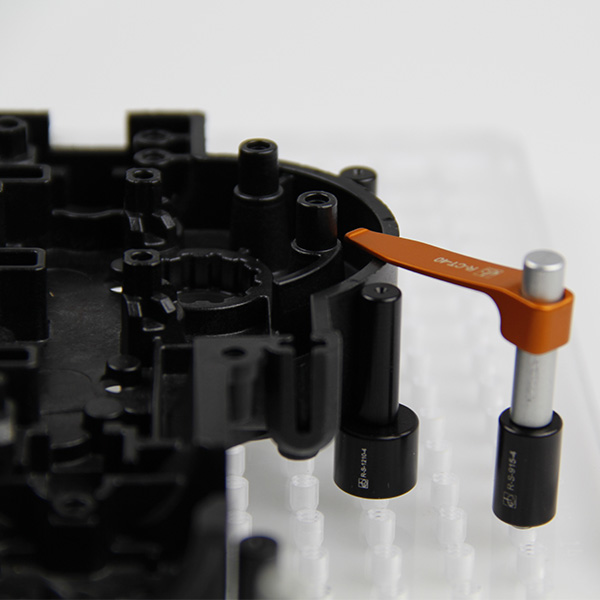

Plastic part held with Spring pusher standoff clamps, Adjustable slide and Pin standoffs
Plastic part held with Spring pusher standoff clamps, Adjustable slide and Pin standoffs
[800 x 800] [148kB] -
Metal part held with Micro sliding pusher clamp; plastic part held with Resting pins & Spring pusher standoff clamps on a multi hole vision plate with
Metal part held with Micro sliding pusher clamp; plastic part held with Resting pins & Spring pusher standoff clamps on a multi hole vision plate with QLC
[800 x 800] [121kB] -
-
30 mm long adjustable slide with M4 thread
This adjustable aluminium slide is ideal for placing fixturing components between threads on the base plate. It is recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[578 x 578] [153kB] -
Adjustable slide with acrylic extension and M4 thread
This adjustable slide with acrylic extension is used to increase the reach of the fixturing components on acrylic fixture plates, where backlighting is required. It is recommended for use on vision and multi-sensor machines.
[600 x 600] [86kB] -
Fixturing example on an acrylic plate, using a corner viewer, adjustable angle plate, adjustable slide mirror and rotating 3-jaw clamp
Fixturing example on an acrylic plate.
[4398 x 3828] [2.2MB] -
클램프 모듈식 예
-
Plastic part held with Spring pusher standoff clamps, Adjustable slide and Pin standoffs
Plastic part held with Spring pusher standoff clamps, Adjustable slide and Pin standoffs
[800 x 800] [180kB] -
12.7 mm x 50 mm x 75 mm adjustable angle plate
This adjustable angle plate is ideal for holding components at an angle. It can be adjustable up to 180° and has a Nituff® hard anodised coating, to resist wear and scratching. It is recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[360 x 360] [52kB] -
-
50 mm x 75 mm x 40 mm vertical base plate
This vertical base plate is ideal for holding components vertically. It is recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[360 x 360] [44kB] -
-
Application image for a spring puser standoff clamp
Fixturing example using a spring pusher standoff clamp.
[800 x 800] [106kB] -
Application image for a micro V spring clamp
Fixturing example using a micro V spring clamp.
[800 x 800] [87kB] -
Application image for micro V spring clamp
Fixturing example using a micro V spring clamp.
[689 x 800] [106kB] -
Application image for the micro sliding pusher clamp
Fixturing example for the micro sliding pusher clamp.
[800 x 800] [147kB] -
-
Ø12 mm x 10 mm aluminium standoff with M4 thread
This aluminium standoff is ideal to elevate and locate parts. It is hard coat anodised and recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[600 x 600] [77kB] -
Fixturing example using a micro vice clamp
Fixturing example using a micro vice clamp. Ideal for holding parts horizontally or vertically.
[5278 x 3699] [3.8MB] -
-
-
Mirco sliding pusher clamp application example
For securing small and delicate parts using a sprung pointed tip, with minimum force and contact. The tip is adjustable to various heights for a variety of different components.
[800 x 800] [135kB] -
Plastic part being held with the micro V spring clamp
For locating and securing parts in a V. The clamp has an adjustable spring arm for different diameter components and also an adjustable end stop.
[800 x 800] [100kB] -
-
-
자석 모듈식 예
-
Magnetic mini v block application image
Magnetic mini v block application image
[6000 x 6000] [3.2MB] -
Magnetic mini v block application image
Magnetic mini v block application image
[6000 x 6000] [4.5MB] -
Magnetic mini v block application image
Magnetic mini v block application image
[6000 x 6000] [3.5MB] -
Steel part held with V magnets
Fixturing example showing a steel part held with V magnets.
[476 x 389] [51kB] -
Steel part held with pin magnets and a standoff
Fixturing example showing a steel part held with pin magnets and a standoff.
[410 x 414] [37kB]
타워 모듈식 예
-
20 mm² x 80 mm tower with M4 thread with spring pusher standoff clamp and wedge stop
20 mm² x 80 mm tower with M4 thread with spring pusher standoff clamp and wedge stop
[6000 x 6000] [1.1MB] -
Tower application image with M4 thread with spring pusher standoff clamp and wedge stop
20 mm² x 80 mm tower application image with M4 thread with spring pusher standoff clamp and wedge stop
[6000 x 6000] [1.4MB] -
Tower with M4 threads with spring pusher standoff clamp and wedge stop
20 mm² x 80 mm tower with M4 threads with spring pusher standoff clamp and wedge stop
[6000 x 6000] [3.1MB] -
Fixturing example on an acrylic plate showing a tower block with base
Fixturing example for ecommerce.
[600 x 474] [71kB] -
Metal part held using Micro vise clamp with base and Tower block
Metal part held using Micro vise clamp with base and Tower block
[800 x 800] [108kB] -
Plastic part being held using a micro vise clamp with base and tower block
Fixturing example showing a plastic part being held using a micro vise clamp with base, and a tower block.
[800 x 800] [217kB]
기타 모듈식 예
Fixturing example using a micro V block
Fixturing example using a micro V block, for holding cylindrical parts.
[800 x 800][109kB]
Keyence fixturing application image with quick slide plates
Keyence fixturing application image with quick slide plates and centre clamps
[5472 x 2844][882kB]
109mm quick slide plate for use with M4 fixturing components
Quick slide plate with Quick Load Corner (QLC).
[800 x 800][131kB]Metal part held with Micro sliding pusher clamp; plastic part held with Resting pins & Spring pusher standoff clamps on a multi hole vision plate with
Metal part held with Micro sliding pusher clamp; plastic part held with Resting pins & Spring pusher standoff clamps on a multi hole vision plate with QLC
[800 x 800][121kB]
Multiple part set up on quick load corner
Image of multiple parts set up on Renishaw vision fixturing, using an acrylic base plate with quick load corner frame.
